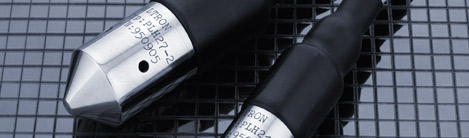

| PLX, PLH series |
Product description
|
| PLX and PLH series are hydrostatic, immersion probes to measure liquid level in open
and closed-no-pressure tanks (basins, pools, deep wells, pump stations...). This probe, lowered down
a tank, measures the height of the above water-volume. Some rope or line must be
used to lower such a probe. Contact with atmosferic pressure is made by a inside-capillary
placed cable. This series of probes is 24V supplied and output 4-20mA, 0-10V (PLX)
or with DC supply 4mA and voltage output 80 to 1000 mV DC (PLH).
To obtain standard output signal 4-20mA, 0-20mA, 0-10V or 0-5V, PLH probes cooperate with pressure gauges
series MPC. Diameters 48, 27, 21 or 16 mm are used in PLX and PLH.
To measure level of polluted or densed liquid, diameters 48 mm is recommended.
|
|
| Technical parameters |
| Measure ranges | within range from 1 to 100mH2O) |
| Power supply | 10÷36VDC (for 4÷20mA output),15÷30VDC (for output0÷10V) |
| Output signal | 4÷20mA,0÷10V |
| Basic error | ≤0,5%of measure range MR |
| Electrical connection | cable in capillary poliuretan shield |
| >Application | liquid level in open tanks |
|
|
|
|
|
|
|
|
| |
|
|
| PLC series |
Product description
|
| PLC series are hydrostatic, immersion probes to measure liquid level in open
tanks: basins, pools, deep wells or pump stations especially with waste water. This probe, lowered down
a tank, measures the height of the above water-volume. Some rope or line can be
used to lower such a probe. Contact with atmosferic pressure is made by a inside-capillary
placed cable. This series of probes is 24V supplied and output 4-20mA, 0-10V.
|
|
| Technical parameters |
| Measure ranges | within range from 1 to 4 mH2O |
| Power supply | 10÷36VDC (for 4÷20mA output),15÷30VDC (for output0÷10V) |
| Output signal | 4÷20mA, 0÷10V |
| Basic error | ≤0,5%of measure range MR |
| Electrical connection | cable in capillary poliuretan shield |
|
|
|
|
|
|
|
|
|
|
